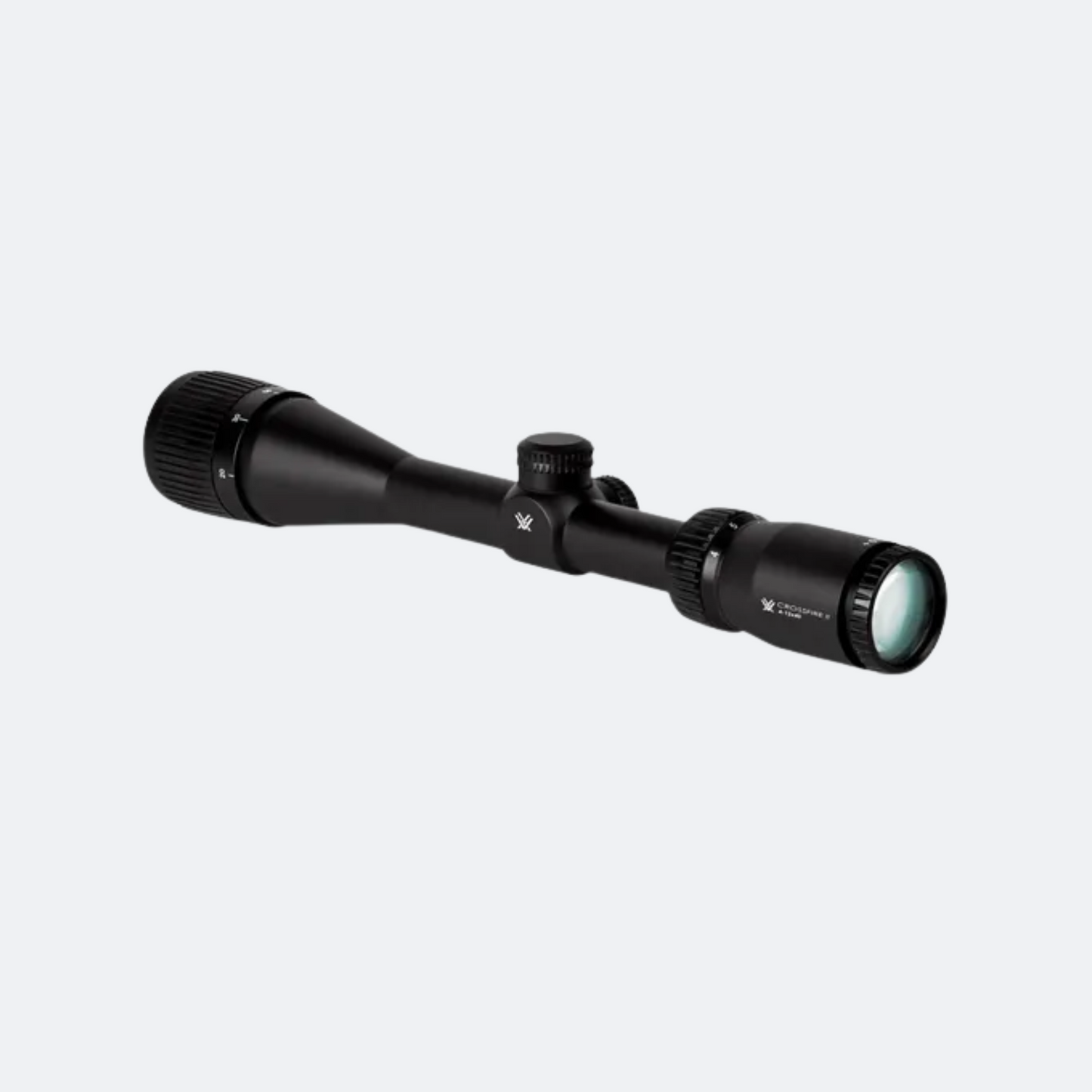

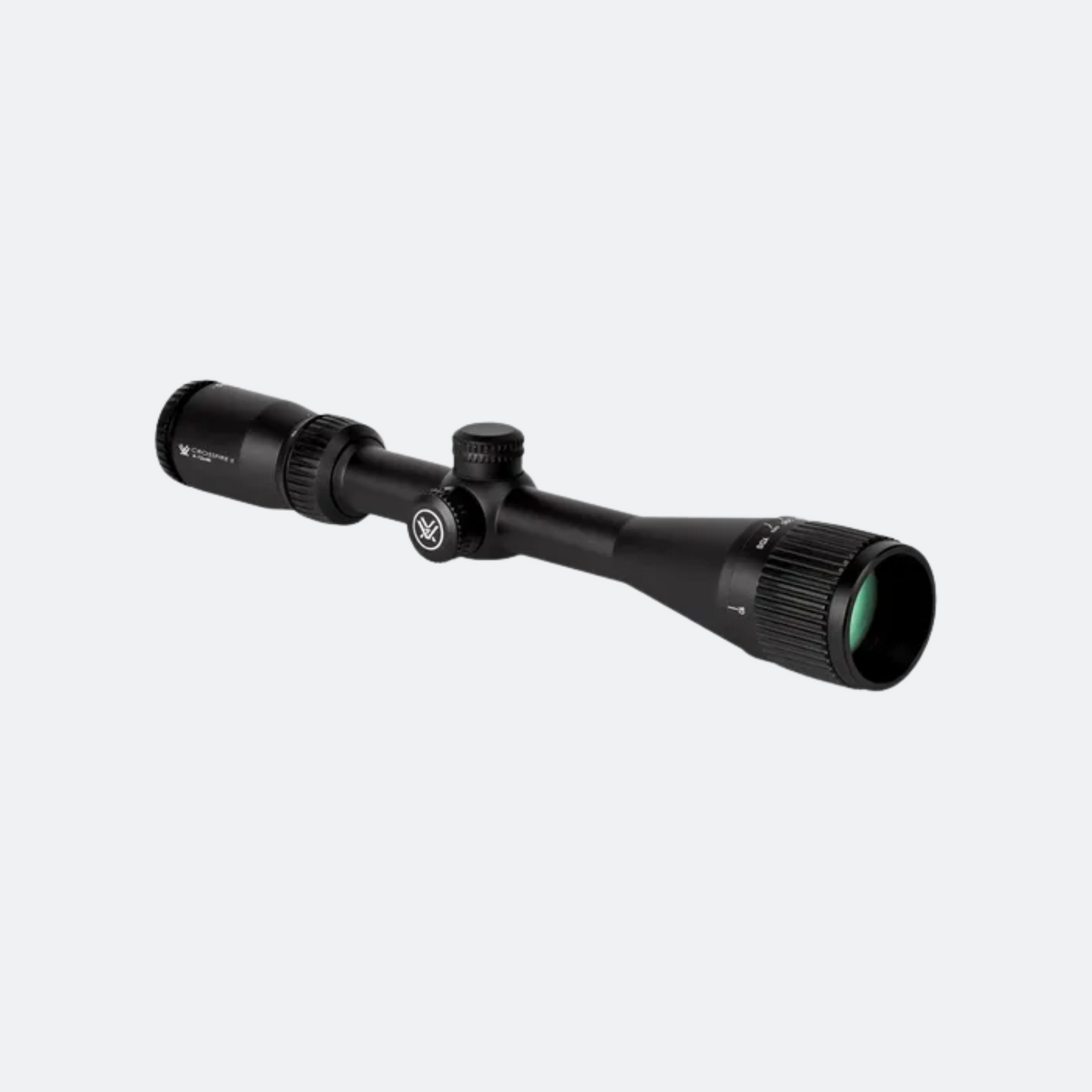

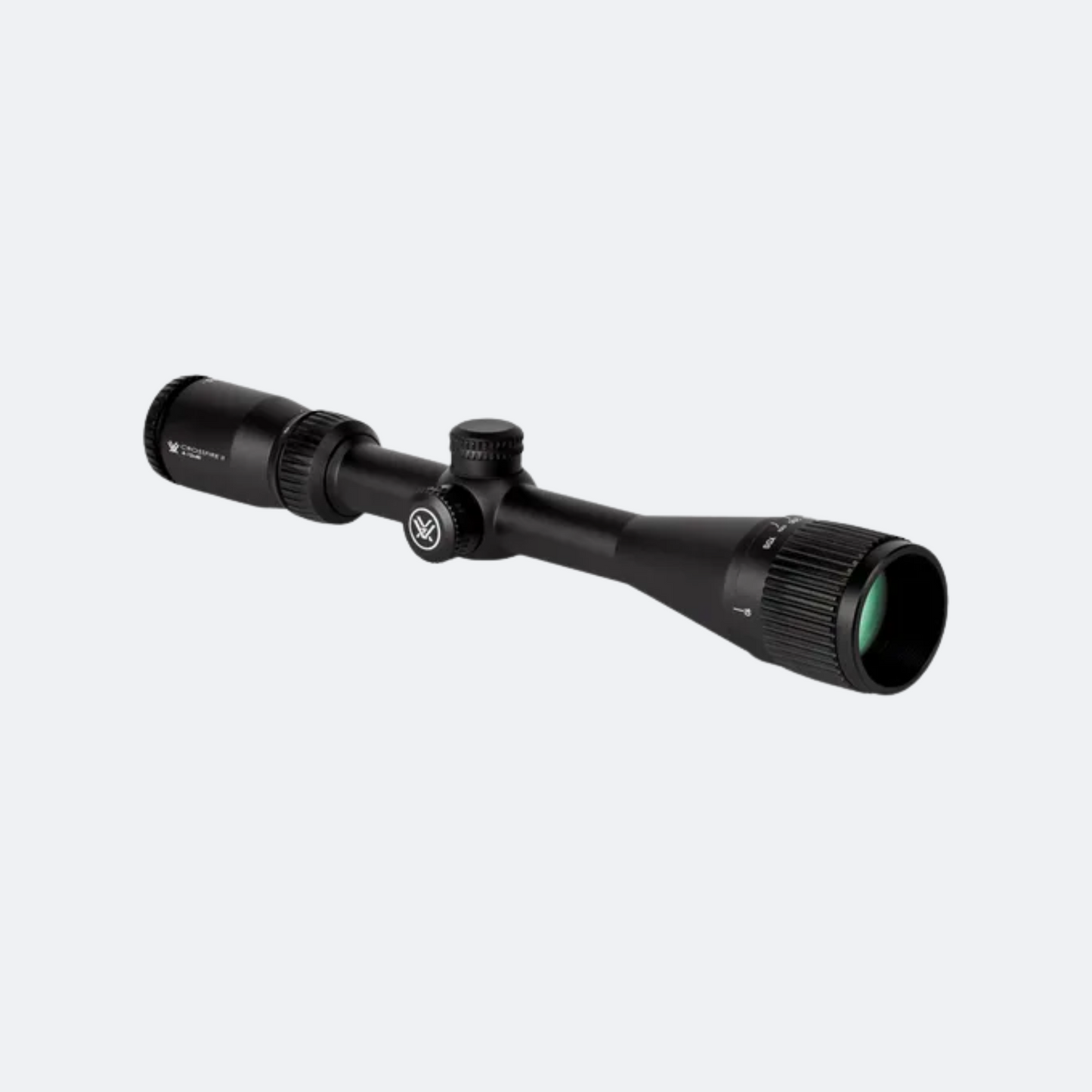

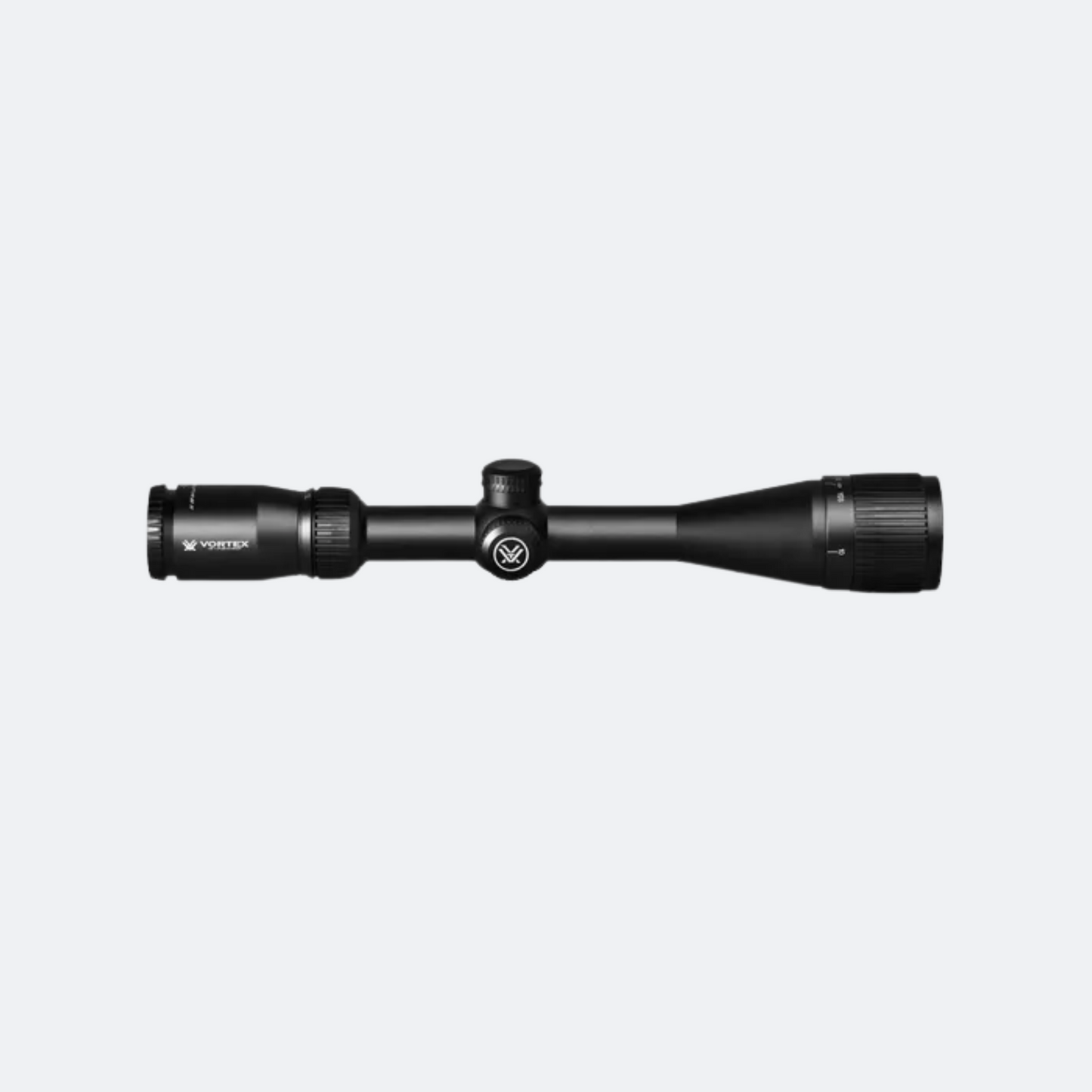

CROSSFIRE II 4-12X40 AO

CROSSFIRE II 4-12X40 AO
VORTEX OPTICS

High performance meets economical. Clear, tough, and bright, our popular Crossfire II line is built to exceed the performance standards of similarly priced riflescopes. Long eye relief, a fast-focus eyepiece, fully multi-coated lenses, and resettable MOA turrets are hallmarks of the series.

Lengths
L1	L2	L3	L4	L5	L6
13.6	2.25	2.02	5.50	4.06	3.32

Heights
H1	H2
2.16	1.68

Specifications:

Magnification	4-12x
Objective Lens Diameter	40 mm
Focal Plane	Second Focal Plane
Reticle	Dead-Hold® BDC (MOA)
Eye Relief	3.9"
Field of View	24.7' - 8.4' @ 100 yds
Turret Style	Capped
Tube Size	1 inch
Adjustment Graduation	1/4 MOA
Travel Per Rotation	15 MOA
Max Elevation Adjustment	50 MOA
Max Windage Adjustment	50 MOA
Parallax Setting	10 yds. - ∞
Length	13.6"
Weight	18.3 oz

Features:

Aluminum Grade	Aircraft
Multi-Coated	Fully Multi-Coated
Shockproof	Rugged construction withstands recoil and impact.

Reticle:

Dead-Hold® BDC (MOA)

Customized hashmark design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.

Included in the Box:

• Sunshade
• Removable lens covers
• Lens cloth
